Coaxial Driver (CB13426E)

Details
Written by: Newton C. Braga

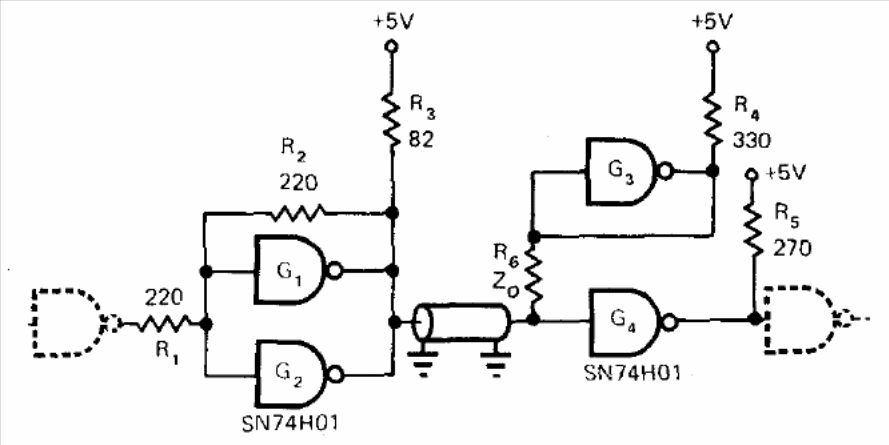

We found this circuit in a 1972 publication. The circuit is indicated for the application of TTL signals for transmission via coaxial cable. The circuit must be powered by a voltage of 5 V.




| Clique na imagem para ampliar |
