High Input Impedance Stage (CB13397E)

Details
Written by: Newton C. Braga

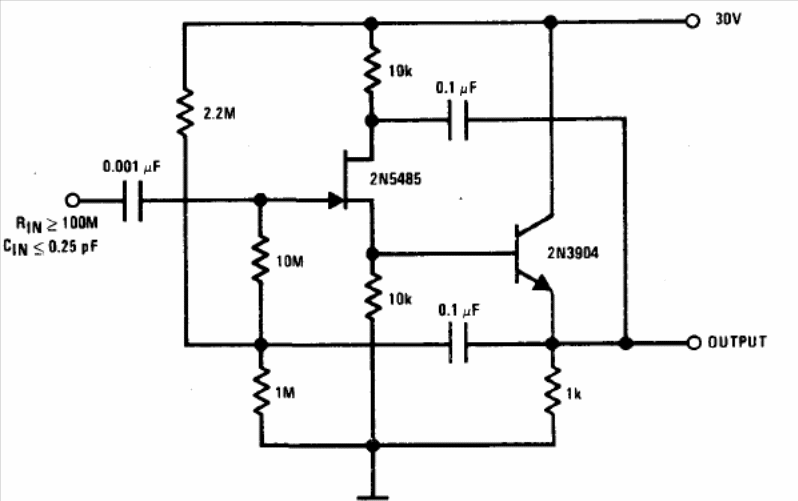

We found this circuit in a 1977 National Semiconductor Databook. The circuit can use other FETs like the BF245 and has an input impedance of 10 megohms. The circuit gain is unitary.




| Clique na imagem para ampliar |
