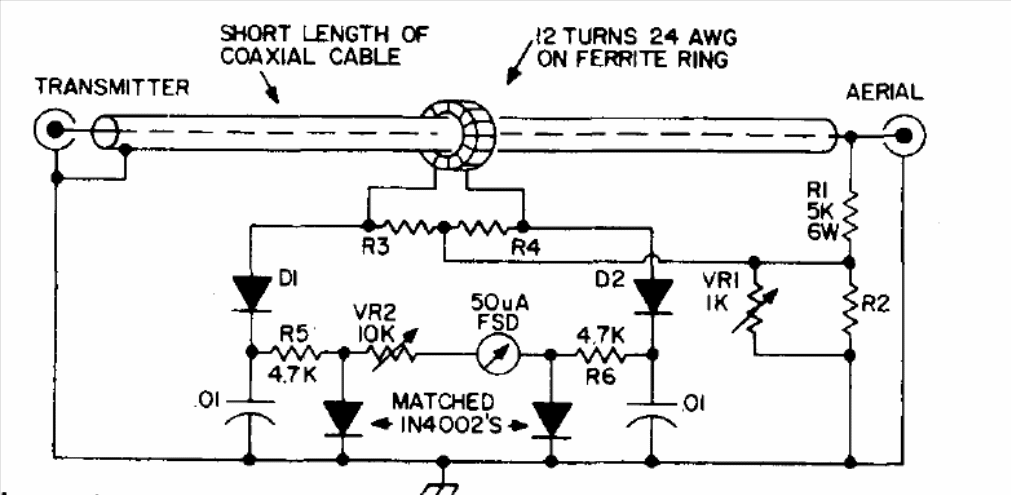

This circuit was obtained in a documentation for radio amateurs in 1974. The coil consists of 12 turns of wire 23 in a ferrite ring on the cable from the transmitter to the antenna. The diodes may be germanium for general use. The circuit measures power up to 1000 W.
