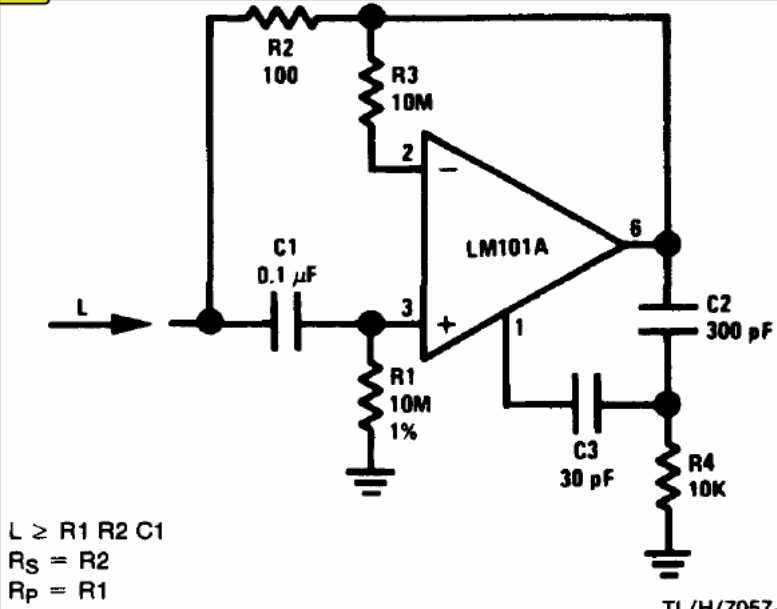

The circuit below simulates an inductance with value given by the components, which can be calculated according to the formulas. The operational can be a more modern equivalent and the symmetrical power supply. The circuit is from the 1994 Linear Applications Handbook by National Semiconductor.
