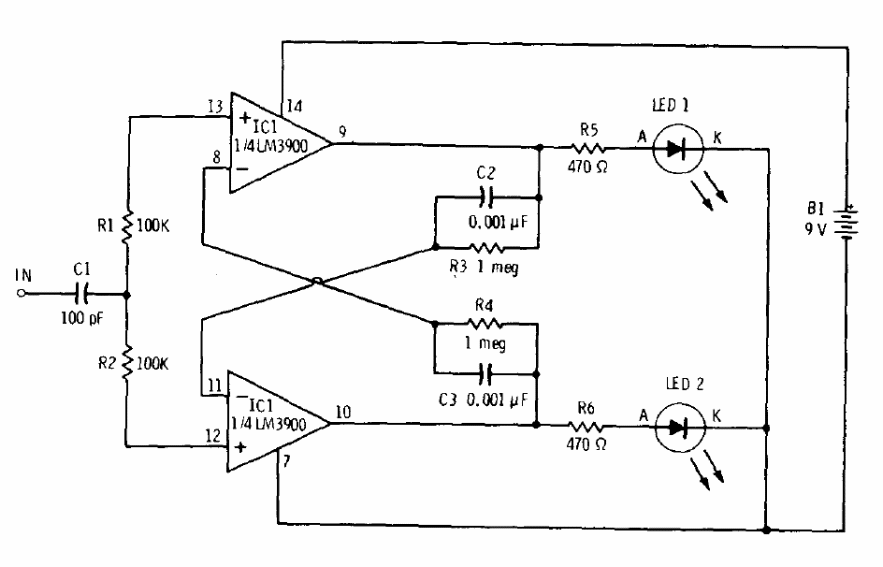

This circuit is from Radio Shack documentation from 1977. It aims to demonstrate the principle of operation of a flip-flop. LEDs are common and the power can be supplied with voltages from 6 to 12 V.
| Clique na imagem para ampliar |
Didactic Flip Flop LM3900 (CB13716E)
- Details
- Written by: Newton C. Braga
