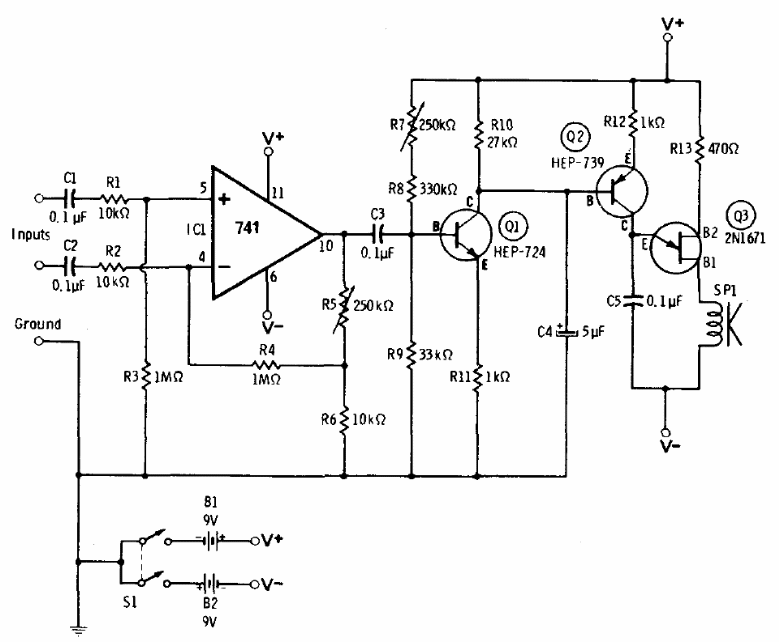

This electromyography monitor is from a 1978 publication on operational amplifiers. The components are common, and the transistors can be BC548 and BC558. The unijunction can be 2N2646. The circuit must be powered by battery only for safety reasons, since it is medical equipment.
