500 to 500 kHz Wobbulator (CB13846E)

Details
Written by: Newton C. Braga

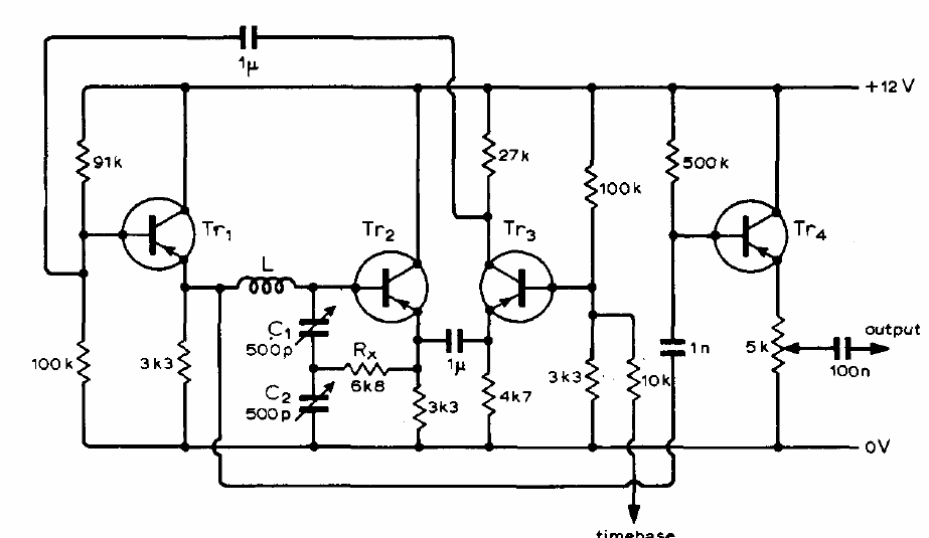

This circuit generates signals for adjustments in FIs of 10.7 MHz. The transistors can be BC548 or equivalent. We found this configuration in a documentation from the 70s.




| Clique na imagem para ampliar |
