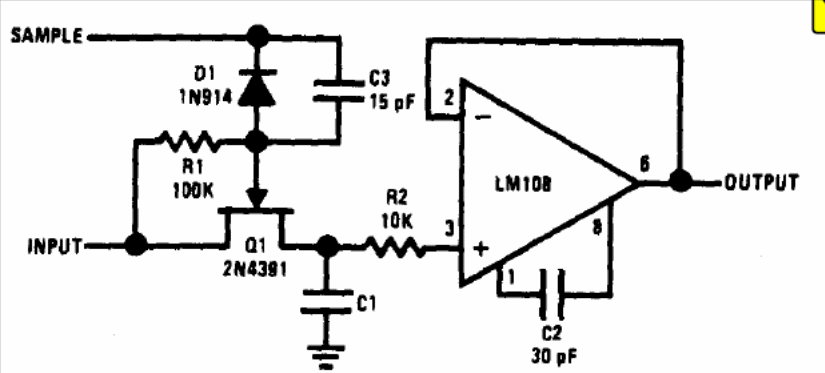

This configuration is from the National Semiconductor Linear Applications Handbook of 1994. The circuit can be implemented with more modern operational amplifiers and the FET can be a BF245. The power supply must be symmetrical.
