The operational amplifier for this tone control found in a 1977 Signetics manual may be the 741. The power supply must be symmetrical and the signal cables short. The bass gain is 20 dB.
| Clique na imagem para ampliar |

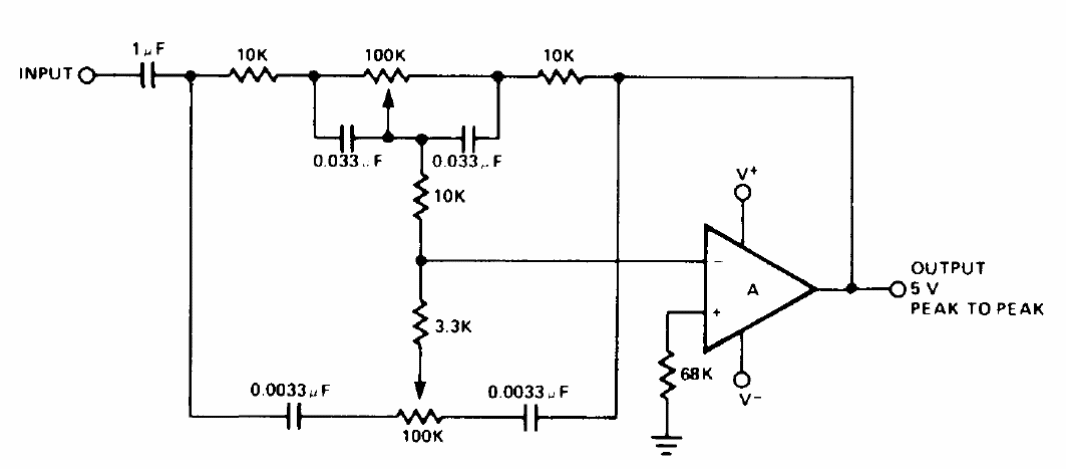

Operational Tone Control (CB13610E)
- Details
- Written by: Newton C. Braga
