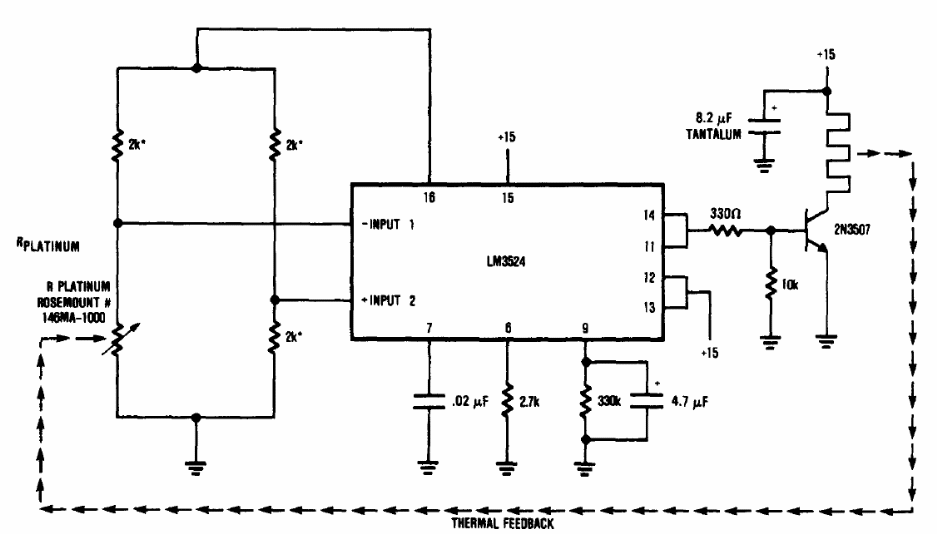

The indicated circuit is based on the National Semiconductor LM3524 which is not an easy component to obtain. The power transistor depends on the controlled heating element. The circuit is from the 1994 Linear applications Handbook.
| Clique na imagem para ampliar |
