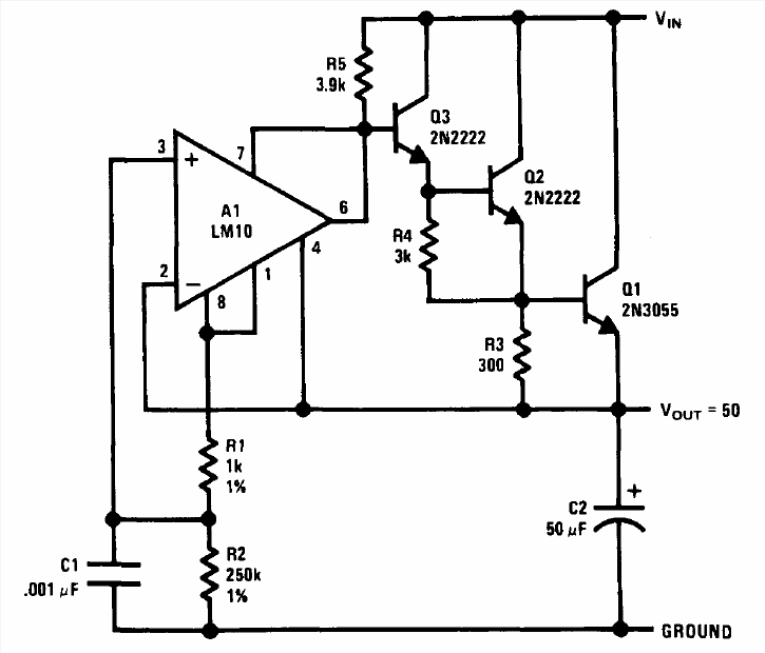

Regulator with Bootstrap LM10 (CB14322E)

Details
Written by: Newton C. Braga



This circuit is from the Linear Applications Handbook of the National Semiconductor of 1994. Transistors are common, but the integrated circuit is not easy to obtain today.




| Clique na imagem para ampliar |
