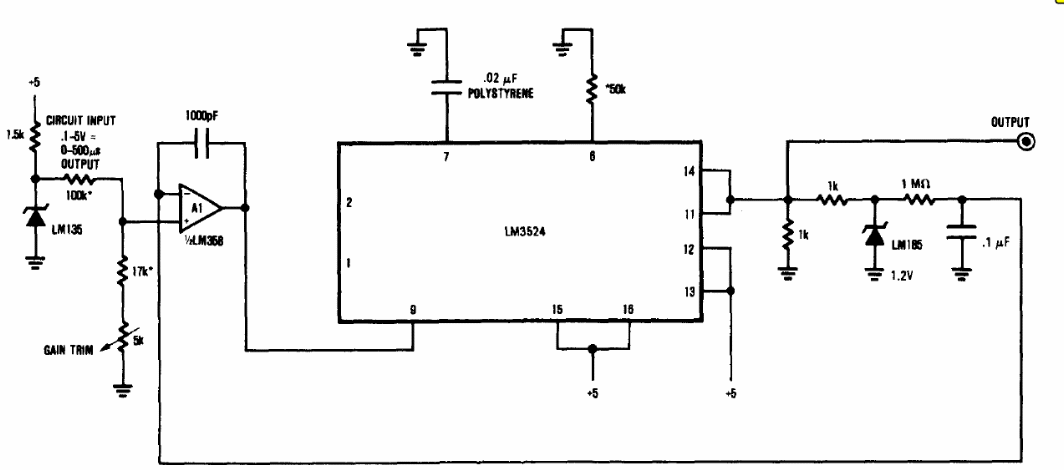

The circuit presented is based on the National Semiconductor's LM3524, a component not common today. The circuit is from the 1994 Linear Applications Handbook.
| Clique na imagem para ampliar |
Temperature to Pulse Width Converter (CB14376E)
- Details
- Written by: Newton C. Braga
