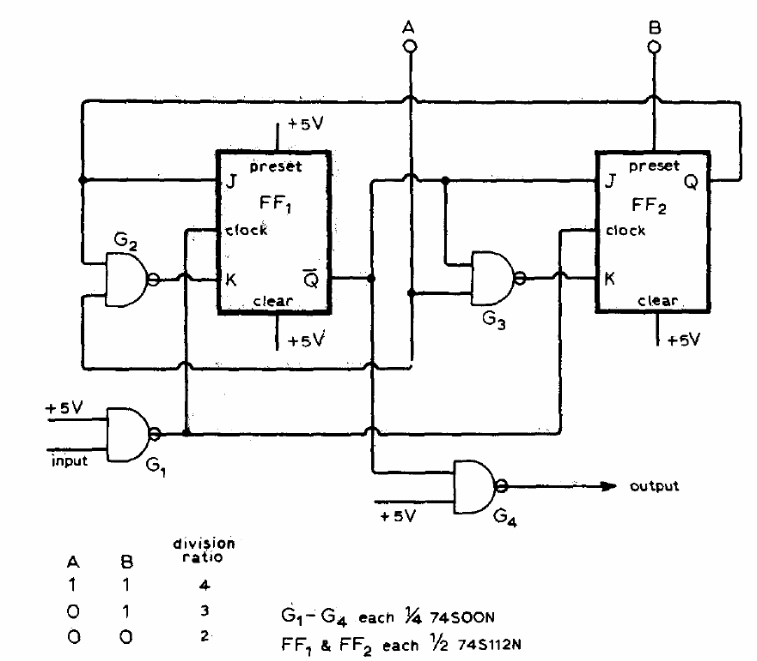

This circuit is from an old American publication. It divides a 40 to 60 MHz TTL signal by integer values such as 2, 3 or 4. The circuit must be powered by 5 V.
| Clique na imagem para ampliar |
40 to 60 MHz divider by 2, 3 and 4 (CB13730E)
- Details
- Written by: Newton C. Braga
