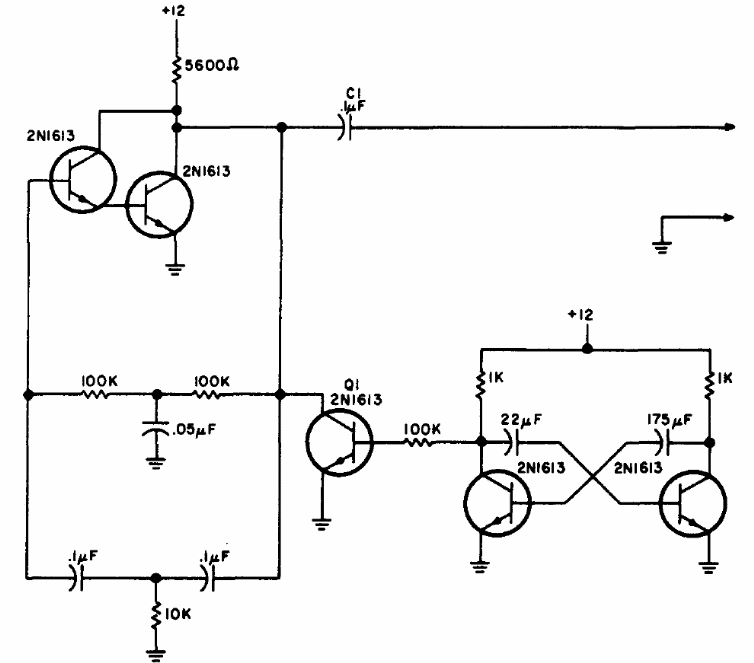

This circuit generates the busy tone of ordinary telephones. The transistors can be the BC548 and the components of the T filter and the multivibrator can be changed to obtain the exact tone.
| Clique na imagem para ampliar |
Busy Tone Generator (CB13937E)
- Details
- Written by: Newton C. Braga
