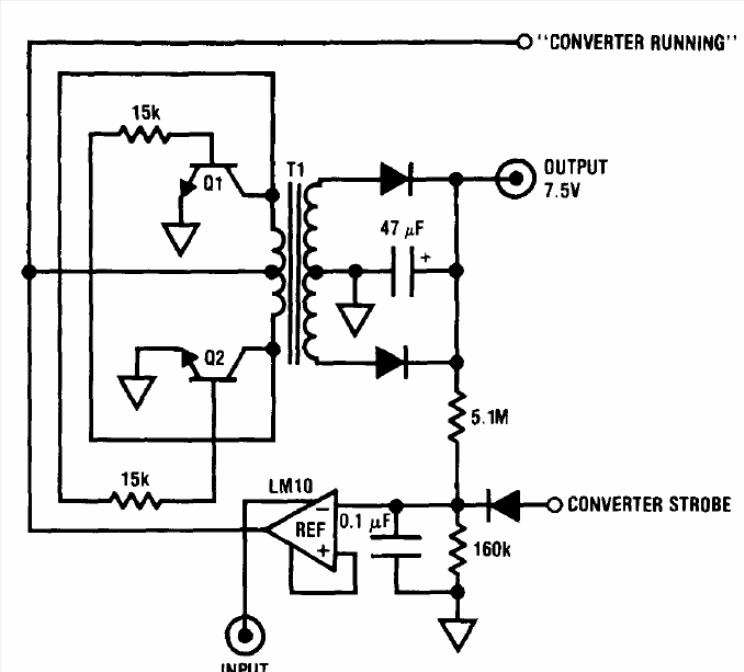

The transistors in this circuit are 2N2222 and general-purpose diodes 1N4148. The circuit is from National Semiconductor's Linear Applications handbook published in 1994. The transformer must be designed according to the desired voltage.
