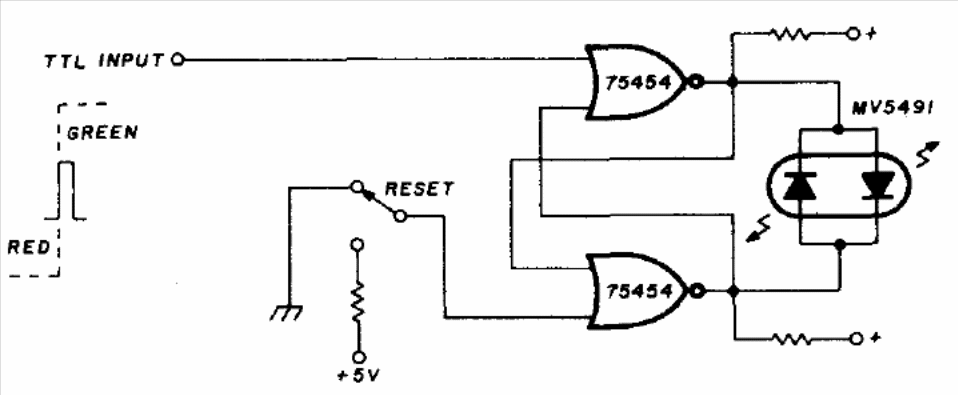

The resistors on this circuit from an American publication from the 70s are 220 ohms. The circuit captures an input pulse and locks, registering its presence. The circuit is ideal for detecting short pulses.
| Clique na imagem para ampliar |
Locked TTL Logic Probe (CB13790E)
- Details
- Written by: Newton C. Braga
