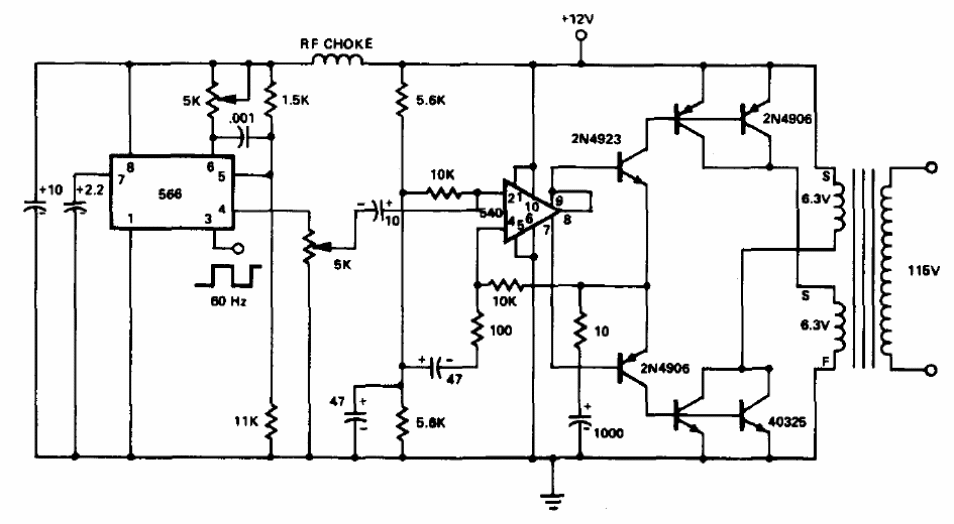

This 12 V to 110 V inverter with 100 W was found in a 1977 Signetics manual. The transformer must be rated according to the desired power and the output transistors admit equivalents.
| Clique na imagem para ampliar |
12 V to 110 V x 60 Hz Inverter (CB13913E)
