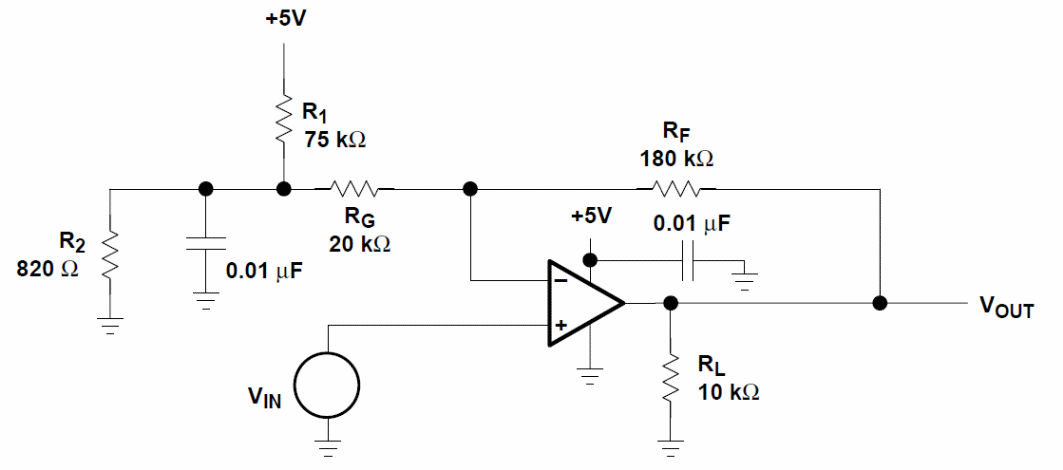

This configuration is from Texas Instruments technical documentation. In it we have the way to use an operational for a voltage gain of 10 times. The gain is given by the relationship between RF and RG and the power supply, in this case, it does not need to be symmetrical. The operational ones used can be those of the TL and TLC series from Texas.
