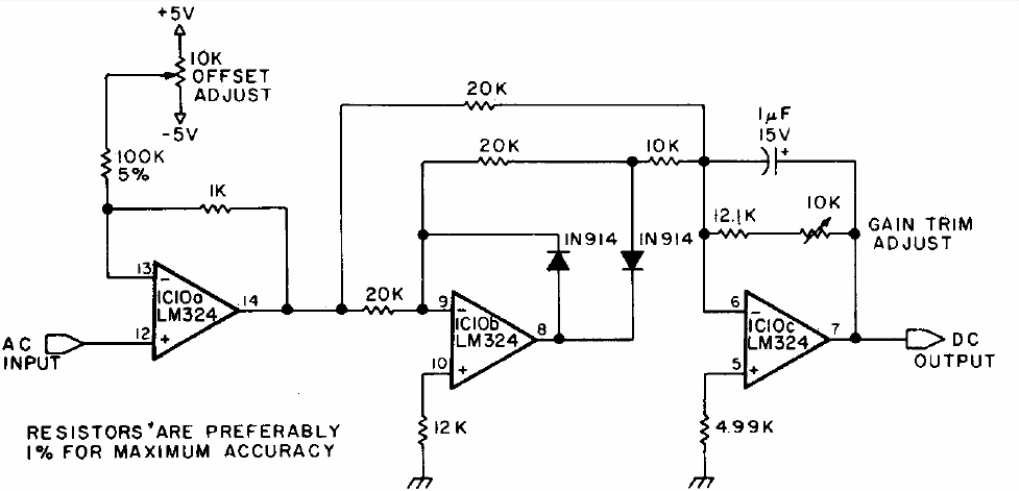

This configuration was found in a 1978 technical documentation. What the circuit does is convert an AC voltage into the corresponding RMS value DC for excitation of an instrument or microcontroller. Equivalent operational amplifiers can be tried out.
