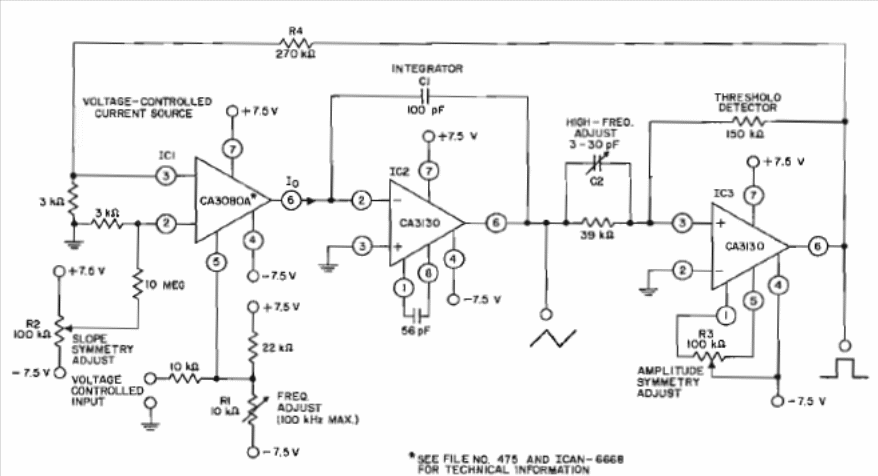

This circuit is from the 1972 RCA Linear Integrated Circuits Manual but can still be easily assembled as the CA3130 can still be found. The circuit covers a dynamic range of 1000 000 to 1 and must be powered by a symmetrical source. The circuit generates triangular and rectangular signals.
