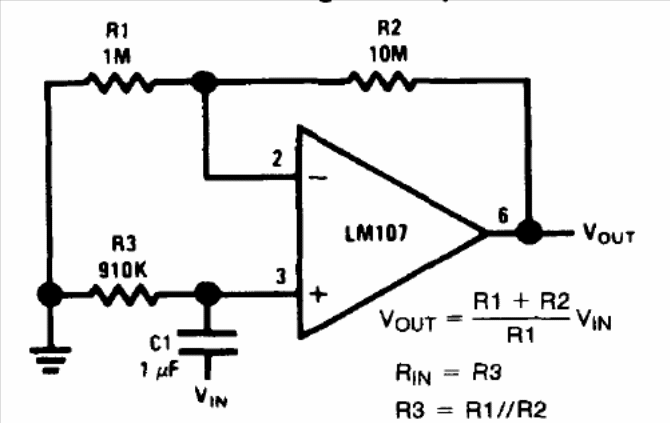

This traditional amplifier configuration is from the National Semiconductor's Linear Applications Handbook of 1994. The circuit can be implemented with other operational amplifiers, according to formulas next to the diagram, and the power supply must be symmetrical.
