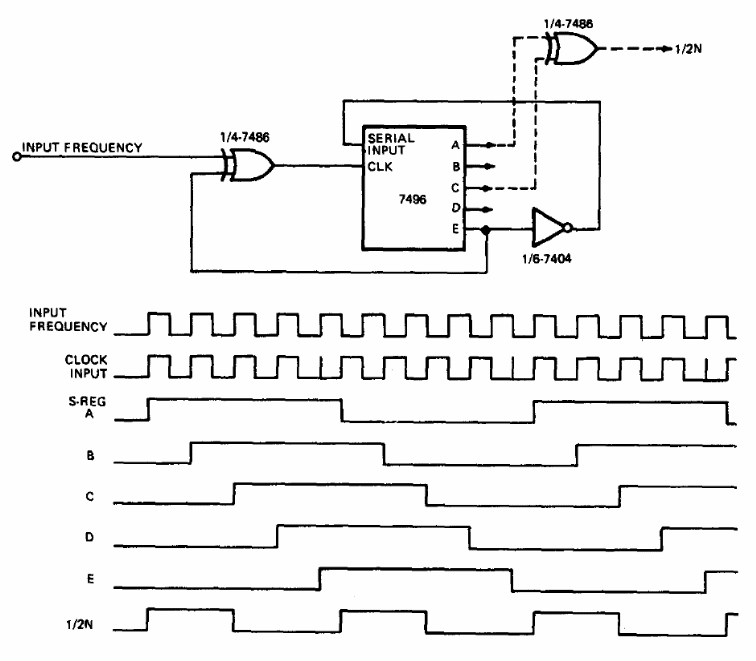

In the figure we have the way to use a shift register to divide the frequency of a signal by 9. The time diagram is given next to the diagram and the maximum frequency depends on the logic used. The circuit can be used as a shield.
