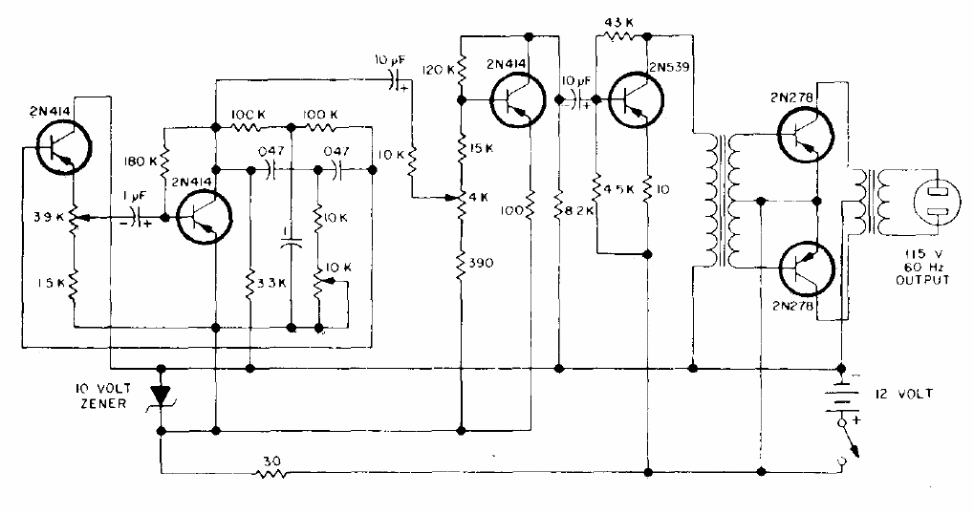

This inverter is critical for transformers and can use modern equivalent transistors like MJ2955 on the output. The circuit provides a 115 V sinusoidal voltage with 12 V input.
| Clique na imagem para ampliar |
100 W x 60 W Sine Wave Inverter (CB13912E)
- Details
- Written by: Newton C. Braga
