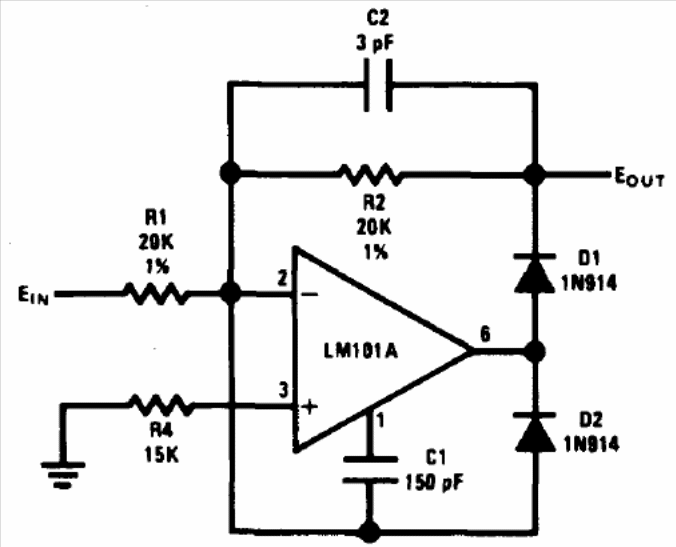

The presented circuit was suggested by the 1994 Linear Applications Handbook from National Semiconductor. The circuit can be implemented with other operational ones and the rectification is for signals of low intensity. The source must be symmetrical with a voltage greater than that of the rectified signal.
| Clique na imagem para ampliar |
