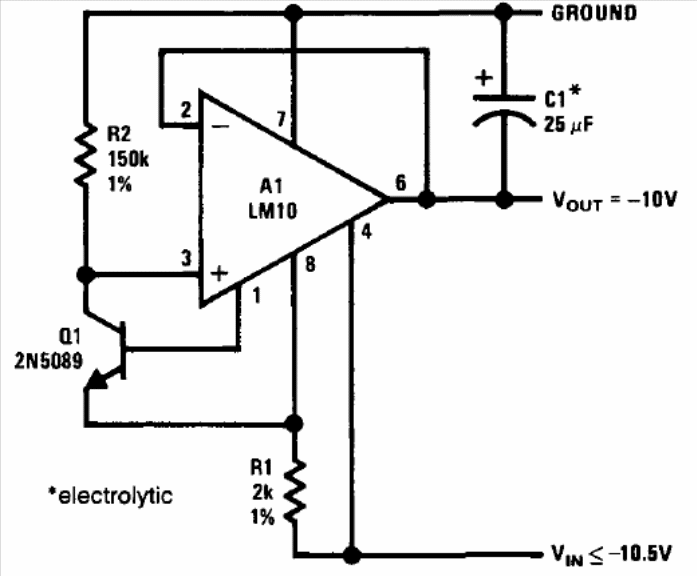

The presented circuit uses an operational amplifier that is uncommon nowadays, but it can be adapted to operate with more modern components. The transistor can be a common general purpose NPN. We found this configuration in a 1994 National Semiconductor documentation.
| Clique na imagem para ampliar |
