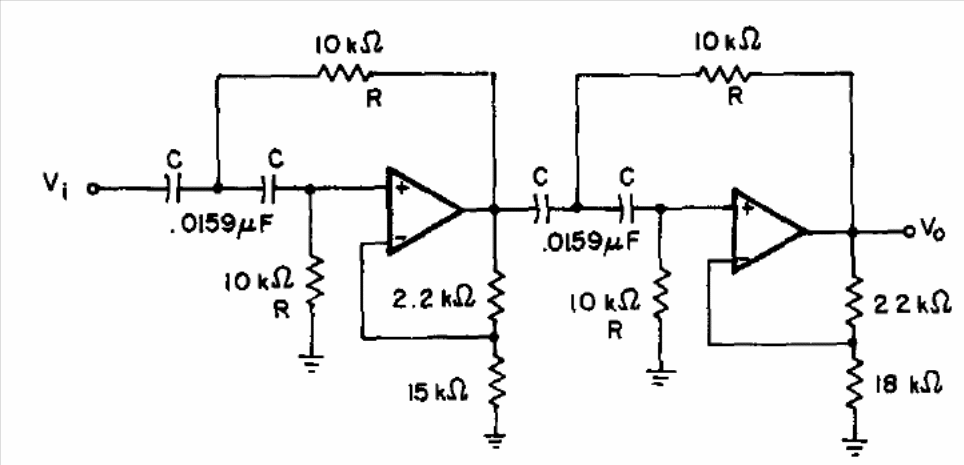

This fourth-order filter was obtained in a 1977 technical documentation and can be implemented with other operational ones. The source must be symmetrical, and the R and C components can be changed for operation at other frequencies.
| Clique na imagem para ampliar |
