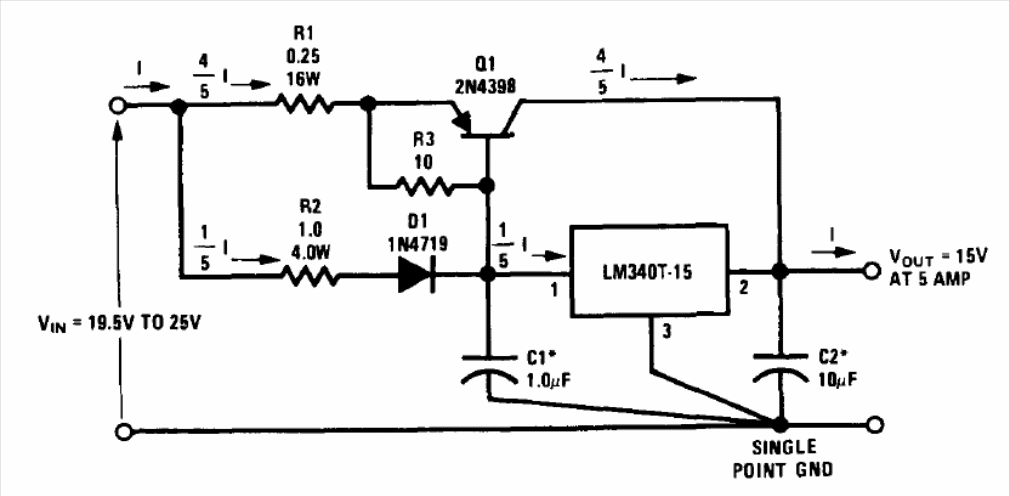

The circuit presented makes use of the LM340 and a power transistor that can be the 2N2955 or more current power equivalent. The circuit is from the National Instruments Linear Applications Handbook.
| Clique na imagem para ampliar |
Regulator 15 V x 5 A LM340 (CB14255E)
