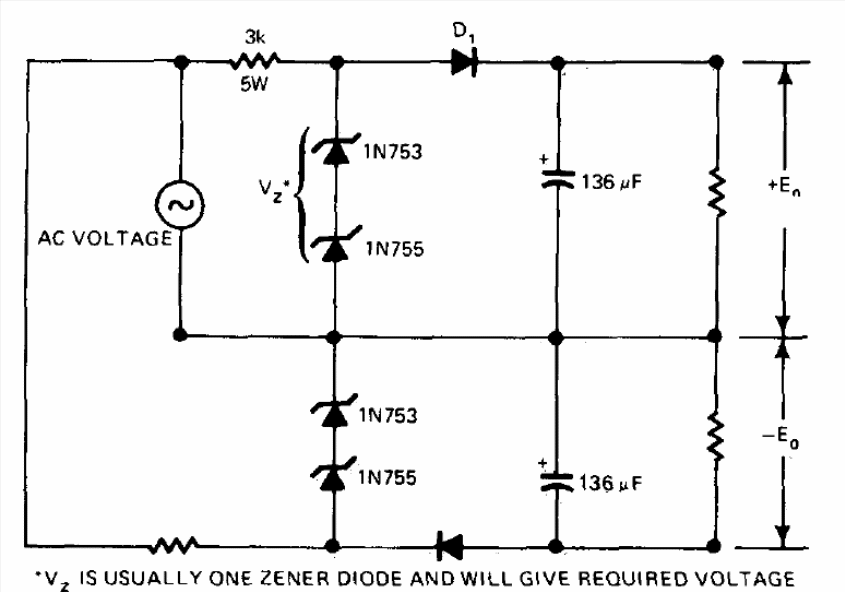

This symmetrical power supply provides a voltage of 12 V under a maximum current of 15 mA. The zeners determine the output voltage and can be changed. Electrolytics can be 150 uF. The circuit is from 1977 documentation.
