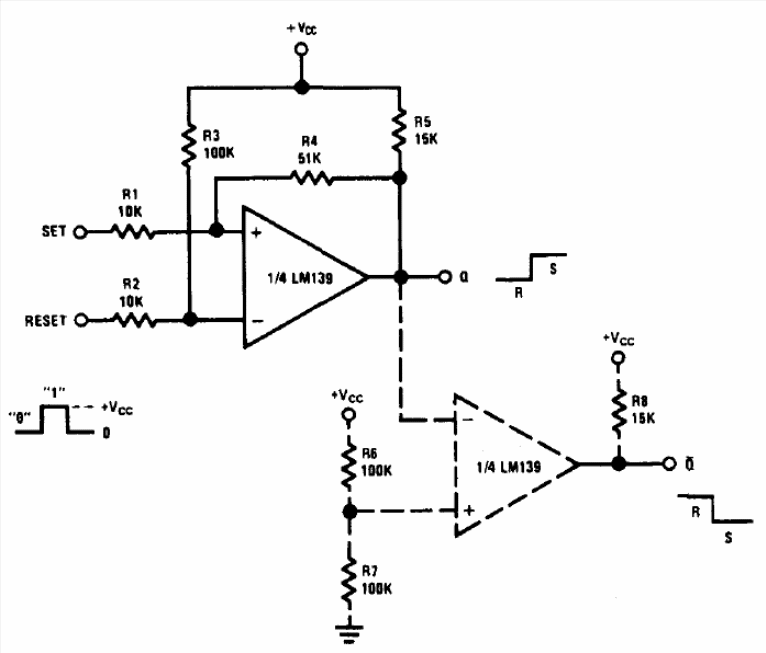

The configuration shown in the figure makes use of two comparators of the four available on the LM139 or equivalent of the series. The circuit is from National Semiconductor's Linear Applications Handbook.
| Clique na imagem para ampliar |
Bistable LM139 CB14240E (CB14240E)
