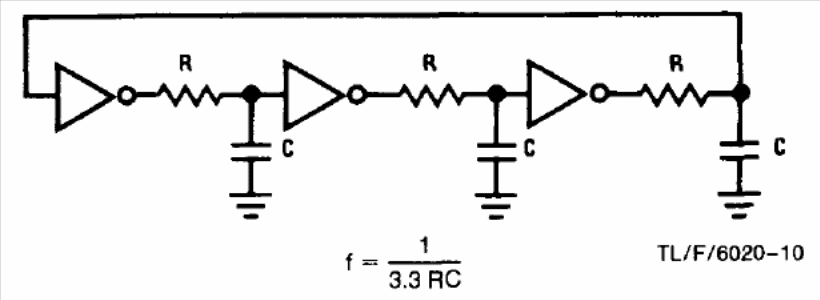

The circuit shown is from the Linear Applications Handbook and the maximum frequency is in the order of a few tens of Megahertz. The formula for calculating the frequency is given next to the diagram.
| Clique na imagem para ampliar |
Oscillator MM74C04 (CB14254E)
- Details
- Written by: Newton C. Braga
