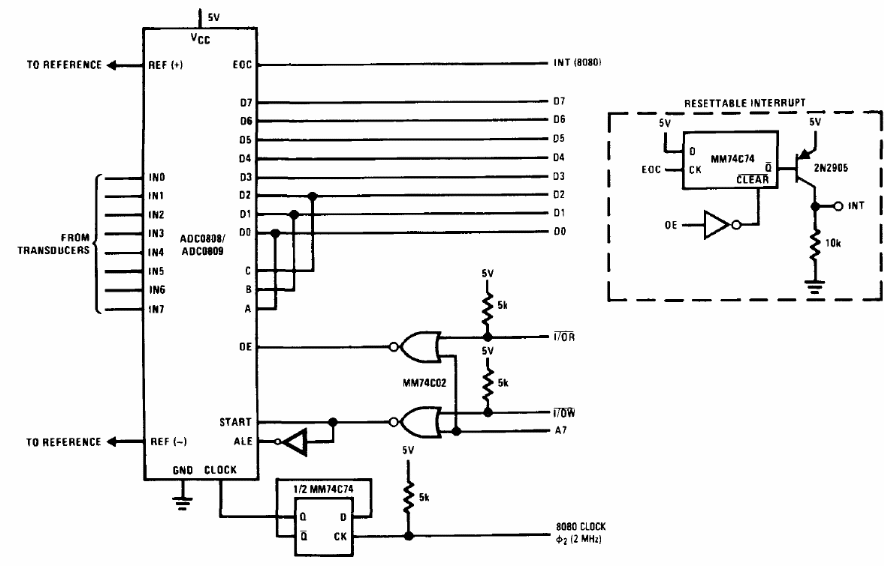

The circuit shown is from the National Semiconductor Linear Applications Handbook of 1994. using ADC0808. The circuit can handle data from up to 4 transducers with an 8-bit output.
