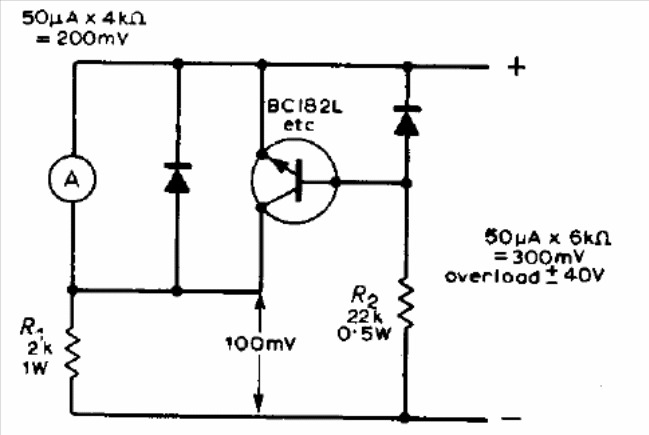

We found this circuit in a 1972 publication. The transistor could be the BC558. The diodes can be 1N4148. The circuit conducts the current when it exceeds a certain value, thus avoiding overloading the instrument.
| Clique na imagem para ampliar |
Overload Protection for Instruments (CB13656E)
- Details
- Written by: Newton C. Braga
