This circuit was obtained in a 1975 filter cookbook. The circuit can use other operational amplifiers and must be powered by a symmetrical source. The frequency can be changed by changing the capacitors.
| Clique na imagem para ampliar |

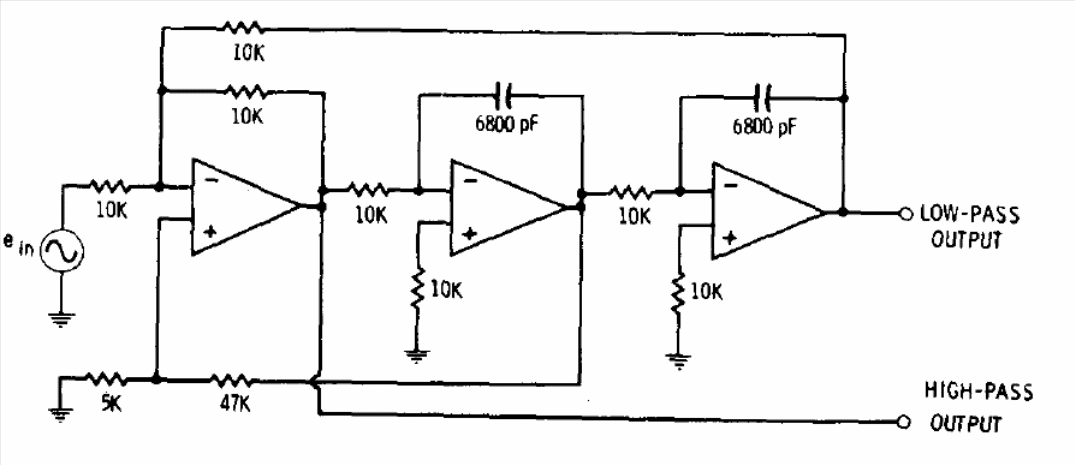

2.5 kHz High Pass and Low Pass Filter with the 741 (CB13708E)
- Details
- Written by: Newton C. Braga
