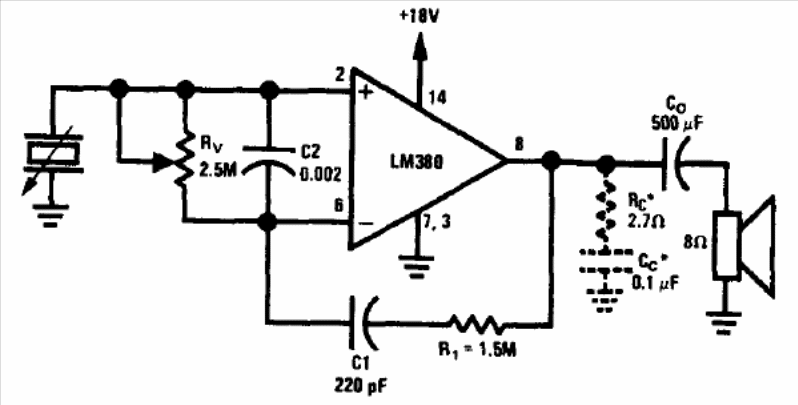

This amplifier, with a power that reaches 3 W, according to the power that can be from 9 to 14 V, was found in the Linear Applications Handbook by National Semiconductor. The circuit is for piezoelectric phonographic capsules found on old record players.
