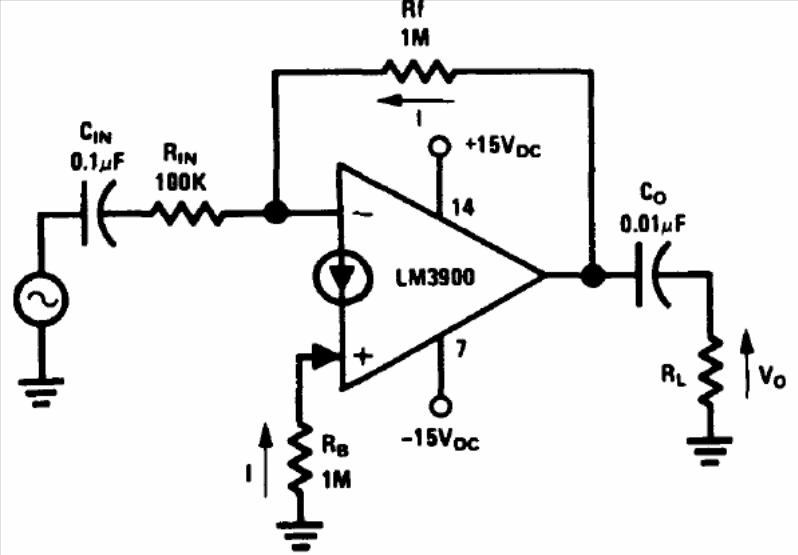

The circuit shown makes use of a symmetrical 15 V source and an LM3900 transconductance operational amplifier. The circuit has gained 10 voltage and was suggested by National Semiconductor in its Linear Applications Handbook.
| Clique na imagem para ampliar |
