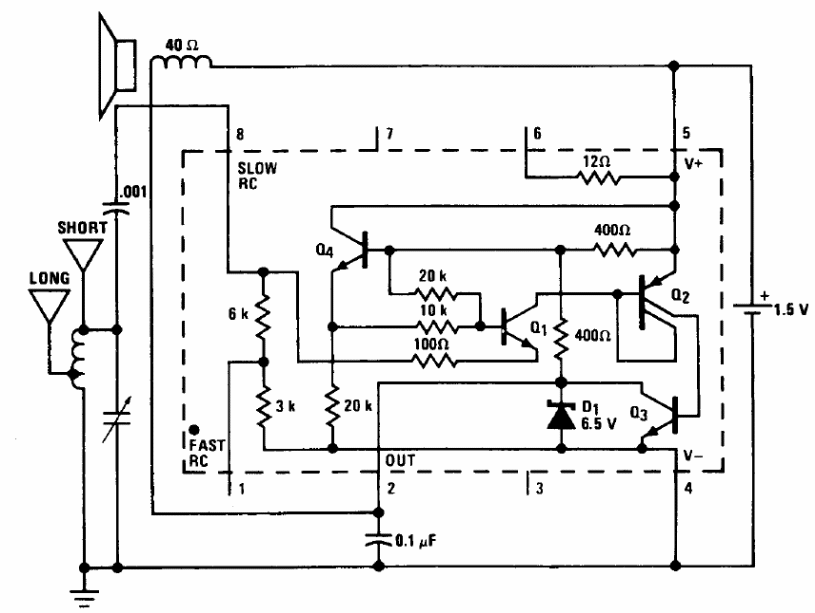

The circuit presented was obtained in a technical documentation from National Semiconductor. The coil consists of 20 + 80 turns of enameled wire 28 in a 15 to 20 cm long ferrite rod and the variable capacitor can be obtained from a standard MW radio.
