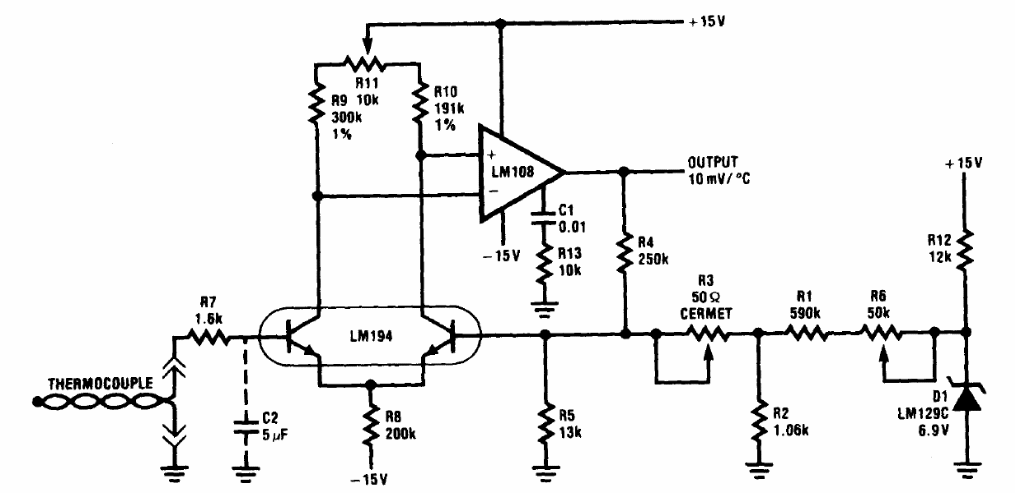

The circuit is from the 1994 National Instruments Linear Applications Handbook. The LM194 consists of a matched pair of transistors. The circuit can be designed with more modern equivalent components.
| Clique na imagem para ampliar |
Thermocouple Amplifier LM108 (CB14331E)
- Details
- Written by: Newton C. Braga
