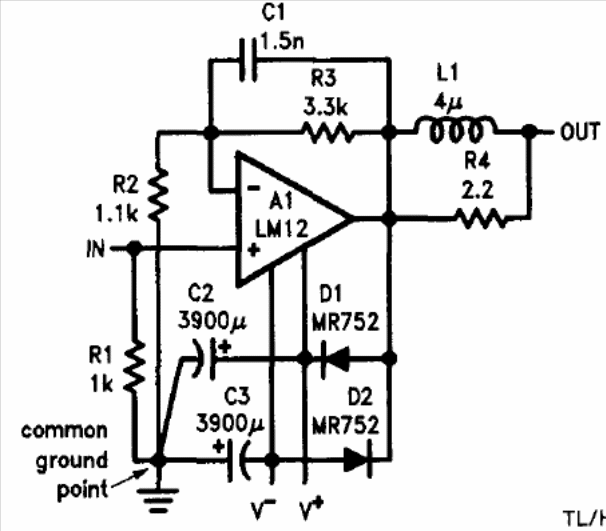

This high-power amplifier with a single operating LM12 (difficult to obtain) is from the Linear Applications Handbook by National Semiconductor. The circuit uses a 40 V symmetrical power supply.
100 W amplifier LM12 (CB14395E)
- Details
- Written by: Newton C. Braga
