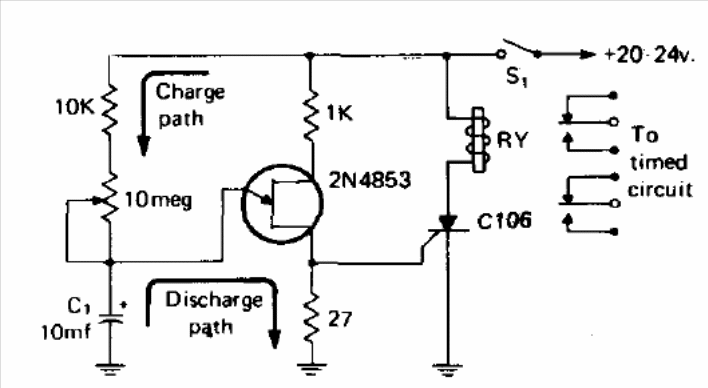

This circuit is from an old 1974 documentation. The circuit can be used to obtain longer intervals. The unijunction can be 2N2646 and the SCR the TIC106. The supply can be made with voltages from 9 to 24 V, depending on the relay used.
