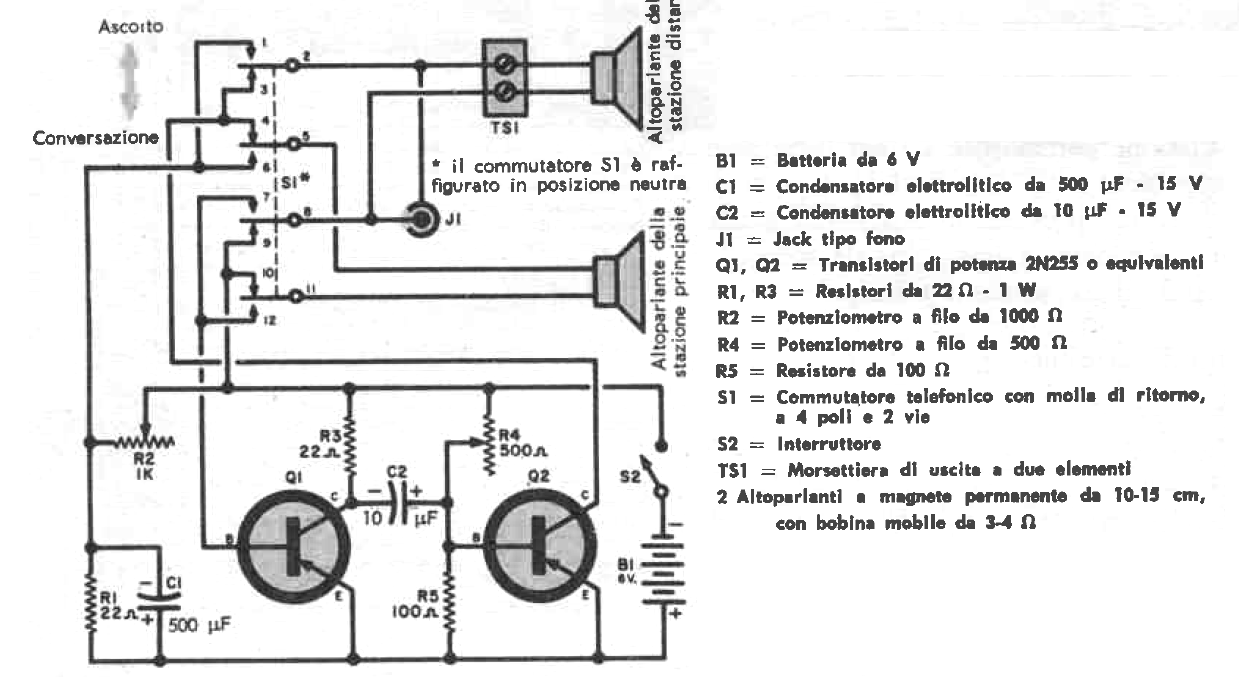

The circuit presented is from a 1969 Radiorama magazine (Italy), and can be designed with more modern components such as the BD136 transistors and the power supply by source or medium batteries. The cables must not be more than 20 meters long. R4 adjusts the resting current for lower consumption without distortion.
