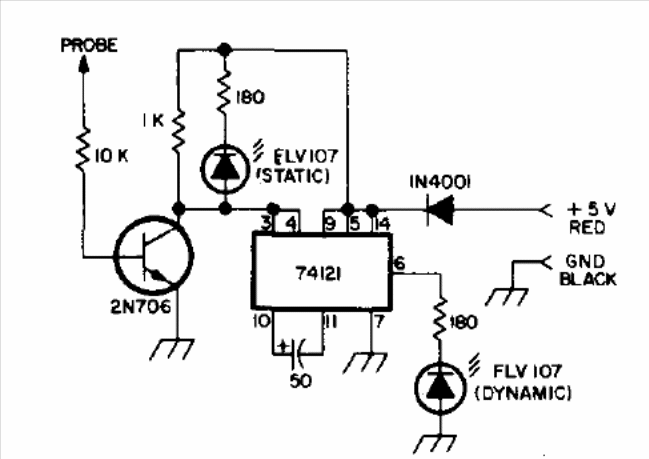

We found this configuration in a 1974 technical documentation. It can test both TTL logic circuits and older versions like RTL. The circuit must be supplied with 5 V obtained from the circuit being analyzed. The transistor can be the BC548.
