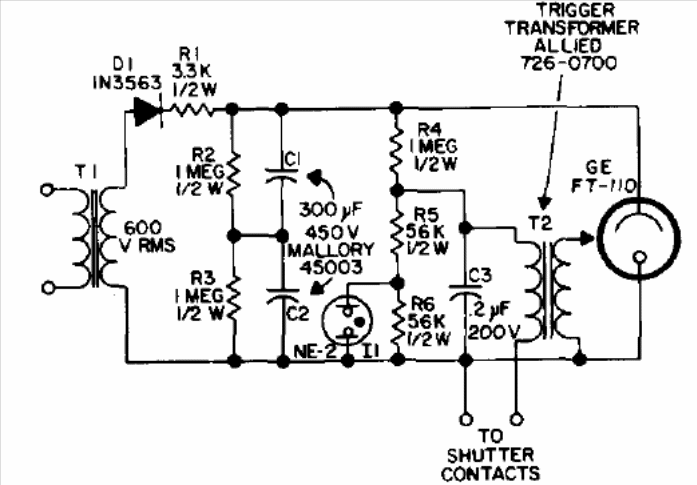

This circuit fires a flash lamp via an external command. The pulse transformer must have a 1:10 turn ratio and the 600 V transformer must provide a current of at least 50 mA. The circuit is from a 1974 documentation.
