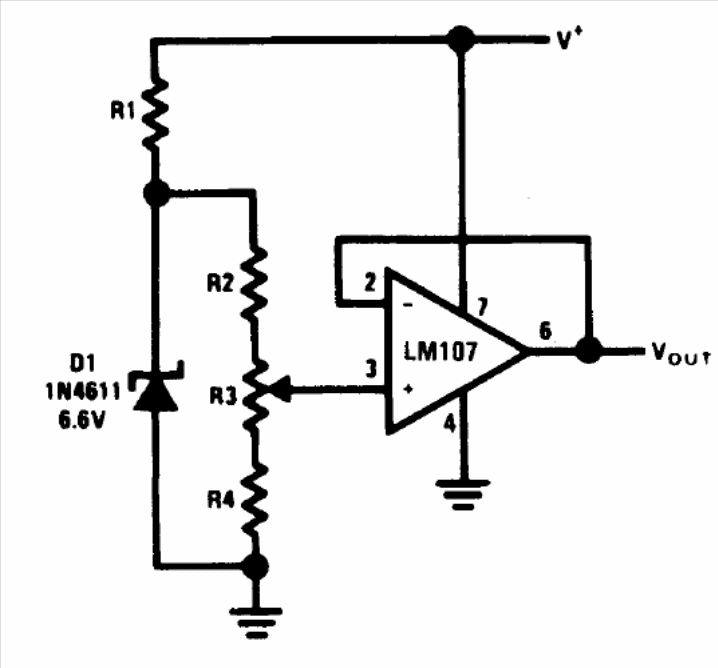

The circuit is from the Linear Application Handbook. The resistors determine the voltage applied to the operational and, therefore, the reference value, being able to assume a good value range. The operational admits equivalent.
