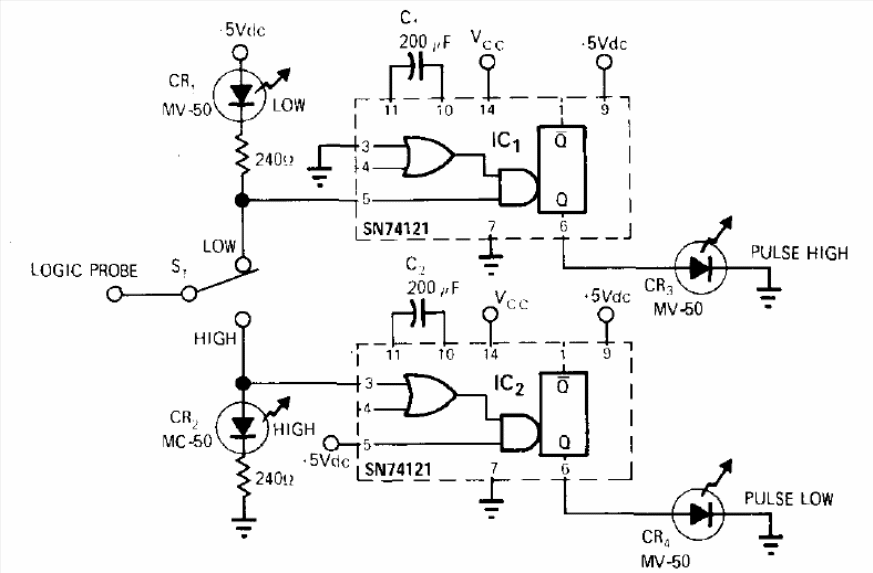

This circuit is indicated for the analysis of pulses in TTL circuits. The circuit is from a documentation from the 70s and must be powered with a 5V voltage.
| Clique na imagem para ampliar |
TTL Logic Tester (CB13784E)
- Details
- Written by: Newton C. Braga
