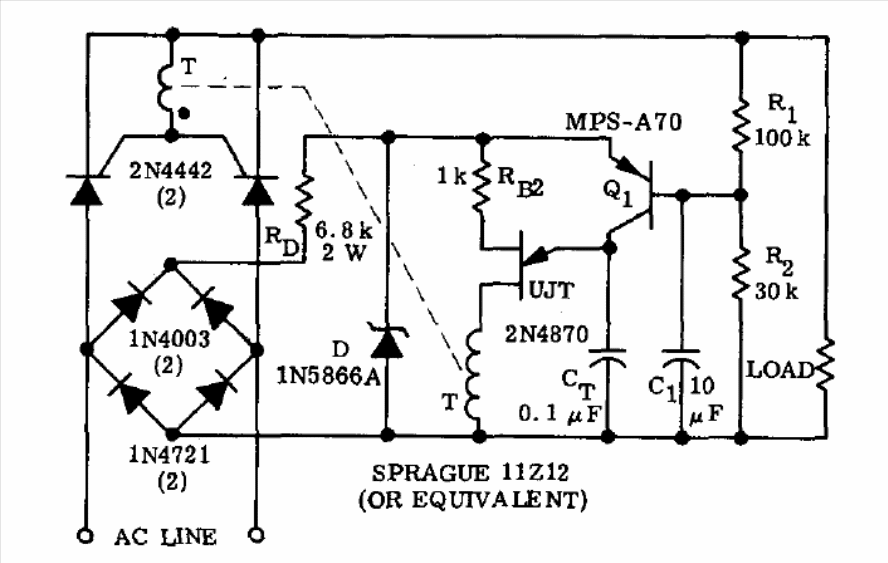

This full-wave circuit was obtained in Motorola's 1974 unijunction transistors manual. The circuit can be made with more modern SCRs and the single-junction transistor 2N2646. The bipolar can be the BC558 and the 1N4004 bridge diodes. The pulse transformer has a 1 to 1 turn reaction. The SCR must have a heat sink.
