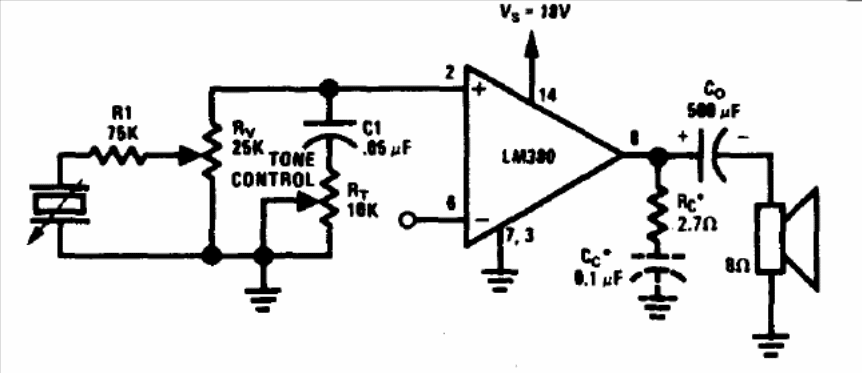

This circuit is suggested by the Linear Applications Handbook of National Semiconductor, being used in turntables of the time (1994 and earlier). The circuit is powered by 12 V and has a tone control. The capsule is of the piezoelectric type.
| Clique na imagem para ampliar |
