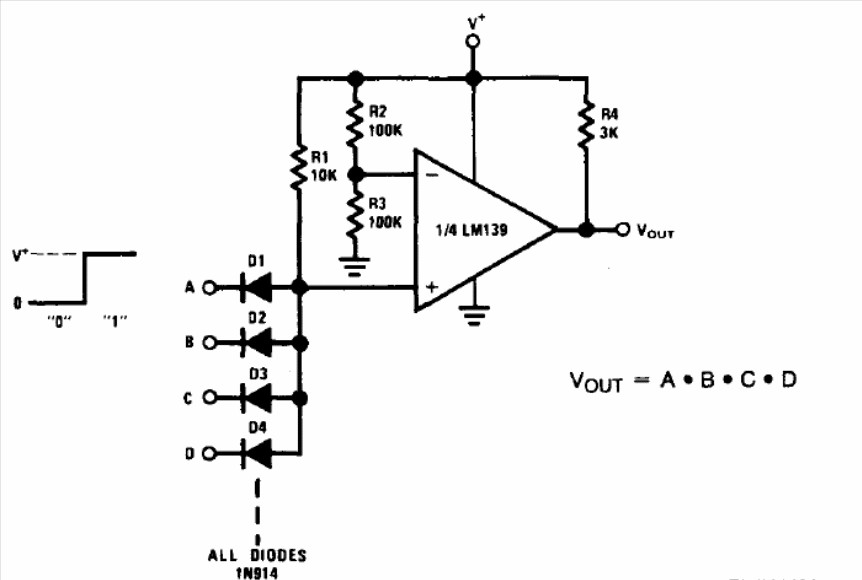

The circuit shown is suggested by National Semiconductor in its 1994 Linear Applications Handbook. The circuit is based on a comparator of the four existing on the LM139 or equivalent of the series. The feeding need not be symmetrical.
