TTL Output Magnetic Reader (CB14249E)

Details
Written by: Newton C. Braga

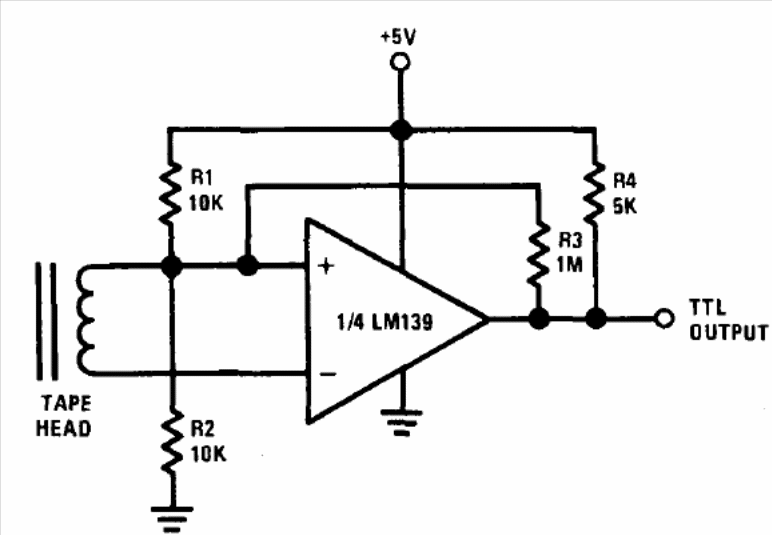

This reader with TTL logic compatible output uses an LM139 comparator. The circuit was found in the 1994 National Semiconductor Linear Applications Handbook.




| Clique na imagem para ampliar |
