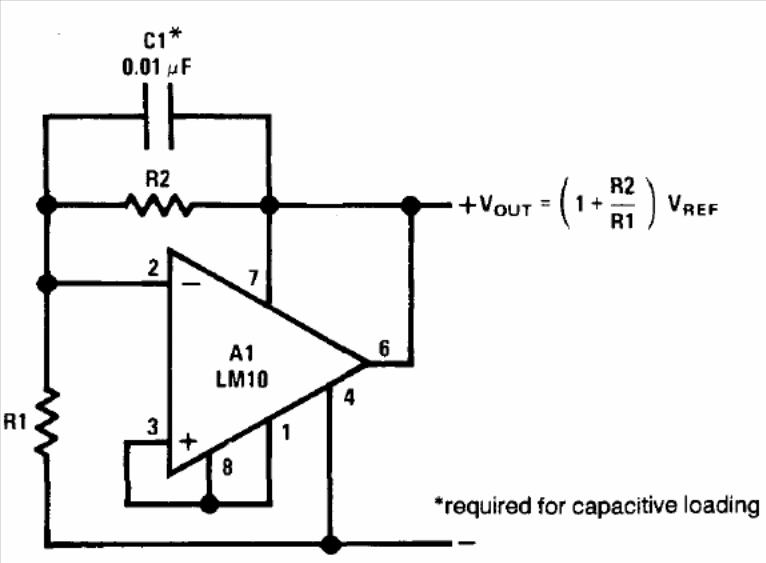

The presented circuit uses a component not very common in National Semiconductor. The circuit is from the Linear Applications Handbook and the formula for calculating the components is given next to the diagram.
| Clique na imagem para ampliar |
Shunt Regulator LM10 (CB14314E)
