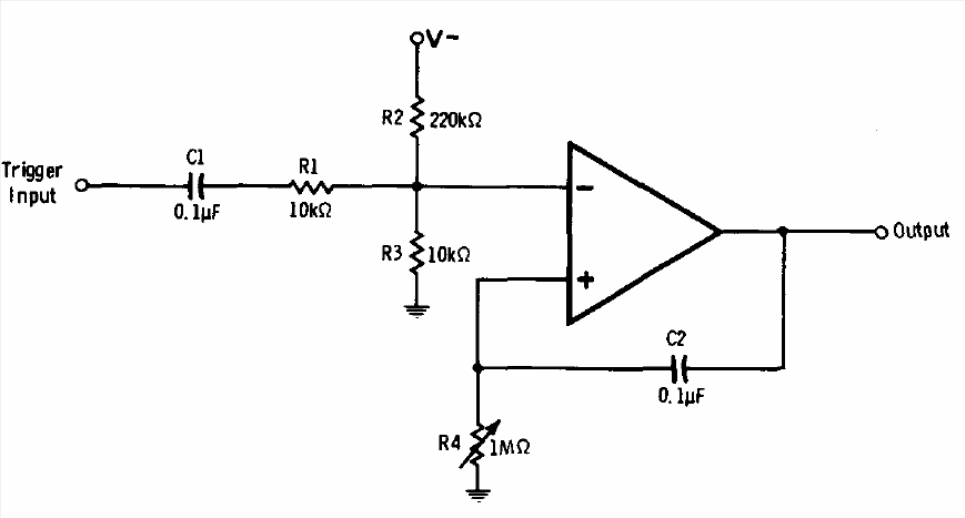

This circuit is from an old publication on operational amplifiers. The circuit can be developed with almost any operational amplifier and must use a symmetrical power source. The time constant is given by C2 and the setting of R4.
